Python3 CGI Programming

What is CGI

CGI is currently maintained by NCSA. NCSA defines CGI as follows:

CGI (Common Gateway Interface) is a program that runs on a server such as an HTTP server, providing an interface to the client’s HTML page.

Web Browsing

To better understand how CGI works, we can follow the process of clicking a link or URL on a webpage:

1. Use your browser to access a URL and connect to an HTTP web server.
1. After receiving the request, the web server parses the URL and checks whether the requested file exists on the server. If it exists, the file content is returned; if not, a corresponding error message is returned.
1. The browser receives information from the server and displays the received file or error message.

A CGI program can be a Python script, PERL script, SHELL script, C or C++ program, etc.

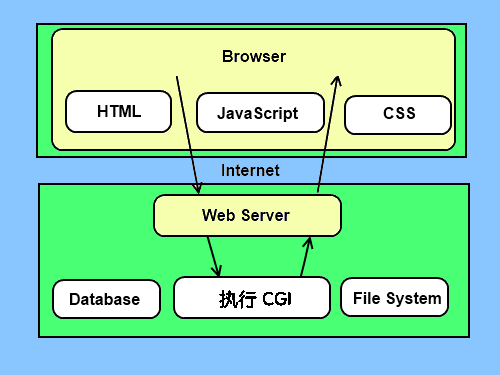

CGI Architecture Diagram

cgiarch

Web Server Support and Configuration

Before you start CGI programming, ensure that your web server supports CGI and that CGI handlers have been configured.

Apache CGI configuration:

Set up the CGI directory:

ScriptAlias /cgi-bin/ /var/www/cgi-bin/

All HTTP servers store CGI programs in a pre-configured directory. This directory is called the CGI directory, and by convention, it is named /var/www/cgi-bin.

The CGI file extension is .cgi; Python can also use the .py extension.

By default, the cgi-bin directory configured to run on Linux servers is /var/www.

If you want to specify other directories for running CGI scripts, you can modify the httpd.conf configuration file as follows:

<Directory "/var/www/cgi-bin">
   AllowOverride None
   Options +ExecCGI
   Order allow,deny
   Allow from all
</Directory>

Add the .py extension in AddHandler so we can access Python script files ending in .py:

AddHandler cgi-script .cgi .pl .py

Your First CGI Program

Let’s create the first CGI program using Python. The file is named hello.py, located in the /var/www/cgi-bin directory, with the following content:

Example

#!/usr/bin/python3

print ("Content-type:text/html")
print ()                             # Empty line, tells the server the header is finished
print ('<html>')
print ('<head>')
print ('<meta charset="utf-8">')
print ('<title>Hello Word - My First CGI Program!</title>')
print ('</head>')
print ('<body>')
print ('<h2>Hello Word! I am the first CGI program from Runoob Tutorial</h2>')
print ('</body>')
print ('</html>')

After saving the file, modify hello.py and change the file permissions to 755:

chmod 755 hello.py

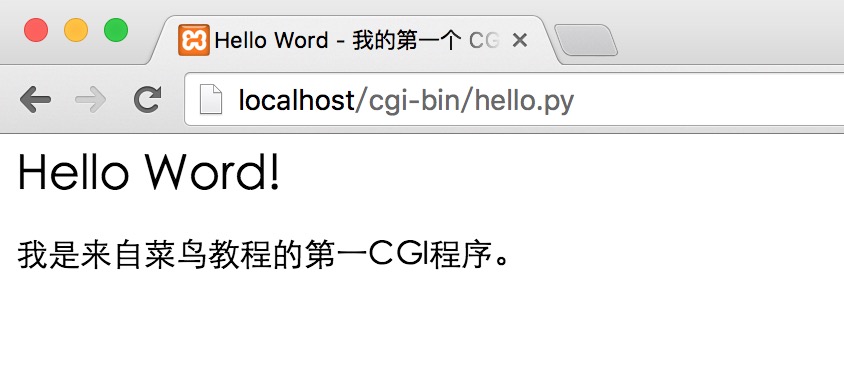

The above program displays the following result when accessed in a browser:

The hello.py script is a simple Python script. The first line of output “Content-type:text/html” is sent to the browser to tell it that the content type is “text/html”.

Use print to output an empty line to tell the server that the header information is finished.

HTTP Headers

The “Content-type:text/html” in the hello.py file content is part of the HTTP header, which is sent to the browser to tell it the content type of the file.

The format of HTTP headers is as follows:

HTTP Field Name: Field Content

For example:

Content-type: text/html

The following table introduces commonly used HTTP header information in CGI programs:


Header	Description
Content-type:	The MIME information corresponding to the requested entity. For example: Content-type:text/html
Expires: Date	The date and time when the response expires
Location: URL	Used to redirect the recipient to a non-requested URL to complete the request or identify a new resource
Last-modified: Date	The last modification time of the requested resource
Content-length: N	The content length of the request
Set-Cookie: String	Set an HTTP Cookie

CGI Environment Variables

All CGI programs receive the following environment variables, which play an important role in CGI programs:


Variable Name	Description
CONTENT_TYPE	The value of this environment variable indicates the MIME type of the transmitted information. Currently, CONTENT_TYPE is generally: application/x-www-form-urlencoded, indicating that the data comes from an HTML form.
CONTENT_LENGTH	When the server communicates with a CGI program via POST, this environment variable indicates the number of valid data bytes that can be read from standard input (STDIN). This variable must be used when reading input data.
HTTP_COOKIE	The COOKIE content in the client.
HTTP_USER_AGENT	Provides client browser information including version numbers or other proprietary data.
PATH_INFO	The value of this environment variable represents additional path information immediately following the CGI program name. It often appears as a parameter to the CGI program.
QUERY_STRING	If the server passes information to the CGI program via GET, the value of this environment variable is the transmitted information. This information follows the CGI program name, separated by a question mark ‘?’.
REMOTE_ADDR	The value of this environment variable is the IP address of the client sending the request, e.g. 192.168.1.67. This value always exists. It is the only identifier the web client needs to provide to the web server, and can be used in CGI programs to distinguish different web clients.
REMOTE_HOST	The value of this environment variable contains the host name of the client sending the CGI request. If reverse lookup is not supported, this environment variable does not need to be defined.
REQUEST_METHOD	Provides the method by which the script is invoked. For scripts using HTTP/1.0 protocol, only GET and POST are meaningful.
SCRIPT_FILENAME	The full path of the CGI script
SCRIPT_NAME	The name of the CGI script
SERVER_NAME	This is your web server’s host name, alias, or IP address.
SERVER_SOFTWARE	The value of this environment variable contains the name and version number of the HTTP server calling the CGI program. For example, the value above is Apache/2.2.14(Unix)

The following is a simple CGI script that outputs CGI environment variables:

Example

#!/usr/bin/python3

import os

print ("Content-type: text/html")
print ()
print ("<meta charset=\"utf-8\">")
print ("<b>Environment Variables</b><br>")
print ("<ul>")
for key in os.environ.keys():
    print ("<li><span style='color:green'>%30s </span> : %s </li>" % (key,os.environ[key]))
print ("</ul>")

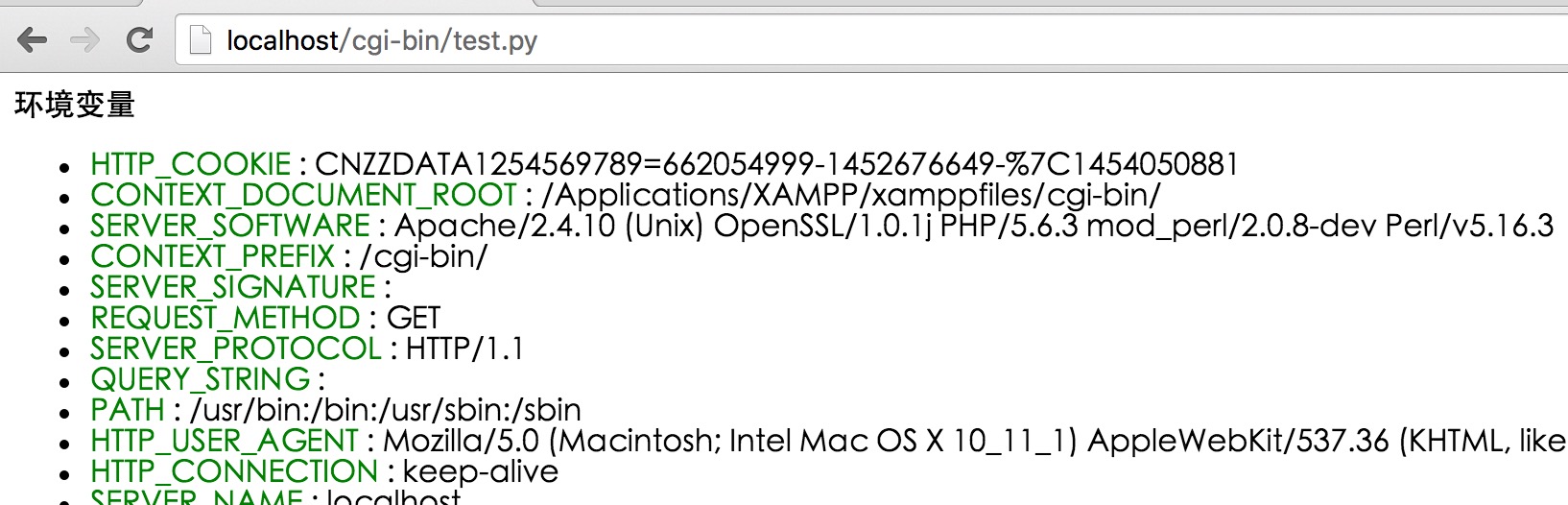

Save the above as test.py, modify the file permissions to 755, and the execution result is as follows:

GET and POST Methods

The browser client transmits information to the server through two methods: GET and POST.

Using the GET Method to Transmit Data

The GET method sends encoded user information to the server. The data is included in the URL of the requested page, separated by a “?” character, as shown below:

http://www.test.com/cgi-bin/hello.py?key1=value1&key2=value2

Some other notes about GET requests:

GET requests can be cached
GET requests remain in browser history
GET requests can be bookmarked
GET requests should not be used when handling sensitive data
GET requests have length limitations
GET requests should only be used to retrieve data

Simple URL Example: GET Method

The following is a simple URL that sends two parameters to the hello_get.py program using the GET method:

/cgi-bin/hello_get.py?name=runoob&url=http://www.runoob.com

The following is the code for the hello_get.py file:

Example

#!/usr/bin/python3

# CGI processing module
import cgi, cgitb

# Create an instance of FieldStorage
form = cgi.FieldStorage()

# Get data
site_name = form.getvalue('name')
site_url  = form.getvalue('url')

print ("Content-type:text/html")
print ()
print ("<html>")
print ("<head>")
print ("<meta charset=\"utf-8\">")
print ("<title>Runoob CGI Test Example</title>")
print ("</head>")
print ("<body>")
print ("<h2>%s Official Site: %s</h2>" % (site_name, site_url))
print ("</body>")
print ("</html>")

After saving the file, modify hello_get.py and change the file permissions to 755:

chmod 755 hello_get.py

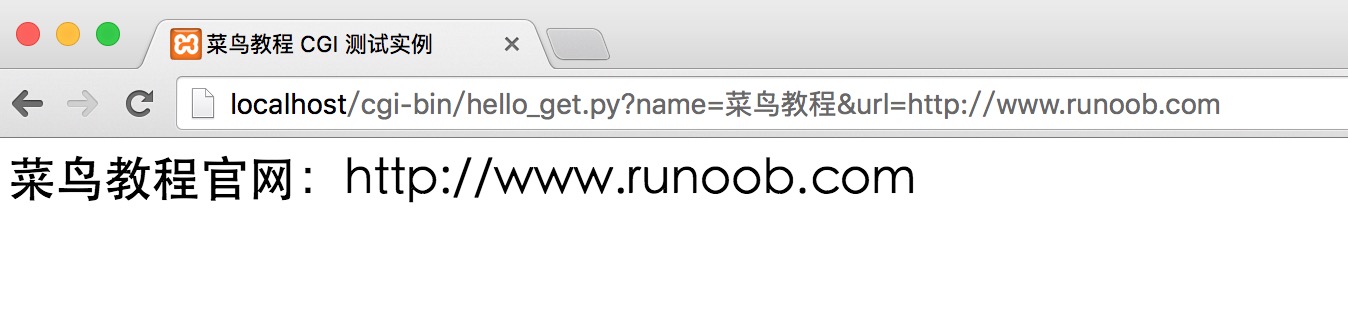

Browser request output result:

Simple Form Example: GET Method

The following is an HTML form that sends two pieces of data to the server using the GET method. The submitted server script is also the hello_get.py file. The hello_get.html code is as follows:

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<form action="/cgi-bin/hello_get.py" method="get">
Site Name: <input type="text" name="name">  <br />

Site URL: <input type="text" name="url" />
<input type="submit" value="Submit" />
</form>
</body>
</html>

By default, the cgi-bin directory can only store script files. We store hello_get.html in the test directory and modify the file permissions to 755:

chmod 755 hello_get.html

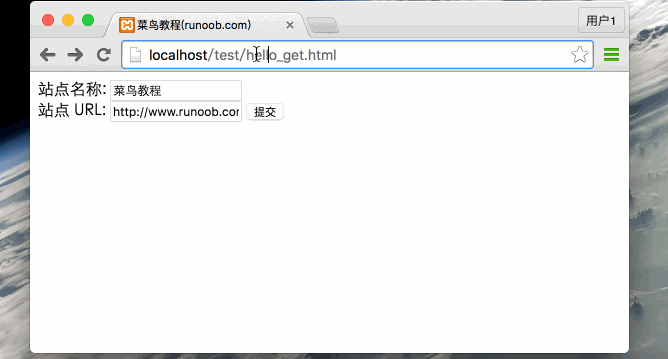

The GIF demonstration is as follows:

Using the POST Method to Transmit Data

Using the POST method to transmit data to the server is more secure and reliable. Sensitive information such as user passwords should be transmitted using POST.

The following is also hello_get.py, which can also handle POST form data submitted by the browser:

Example

#!/usr/bin/python3

# CGI processing module
import cgi, cgitb

# Create an instance of FieldStorage
form = cgi.FieldStorage()

# Get data
site_name = form.getvalue('name')
site_url  = form.getvalue('url')

print ("Content-type:text/html")
print ()
print ("<html>")
print ("<head>")
print ("<meta charset=\"utf-8\">")
print ("<title>Runoob CGI Test Example</title>")
print ("</head>")
print ("<body>")
print ("<h2>%s Official Site: %s</h2>" % (site_name, site_url))
print ("</body>")
print ("</html>")

The following is a form that submits data to the server script hello_get.py via the POST method (method=“post”):

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<form action="/cgi-bin/hello_get.py" method="post">
Site Name: <input type="text" name="name">  <br />

Site URL: <input type="text" name="url" />
<input type="submit" value="Submit" />
</form>
</body>
</html>
</form>

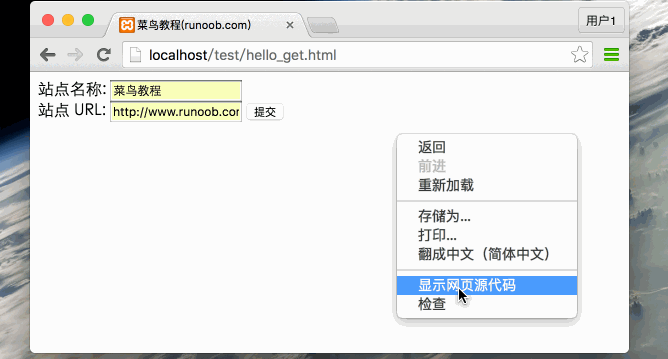

The GIF demonstration is as follows:

Passing Checkbox Data via CGI Program

Checkboxes are used to submit one or more option data. The HTML code is as follows:

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<form action="/cgi-bin/checkbox.py" method="POST" target="_blank">
<input type="checkbox" name="runoob" value="on" /> Runoob
<input type="checkbox" name="google" value="on" /> Google
<input type="submit" value="Select Site" />
</form>
</body>
</html>

The following is the code for the checkbox.py file:

Example

#!/usr/bin/python3

# Import CGI processing module
import cgi, cgitb

# Create an instance of FieldStorage
form = cgi.FieldStorage()

# Receive field data
if form.getvalue('google'):
   google_flag = "Yes"
else:
   google_flag = "No"

if form.getvalue('runoob'):
   runoob_flag = "Yes"
else:
   runoob_flag = "No"

print ("Content-type:text/html")
print ()
print ("<html>")
print ("<head>")
print ("<meta charset=\"utf-8\">")
print ("<title>Runoob CGI Test Example</title>")
print ("</head>")
print ("<body>")
print ("<h2> Is Runoob selected : %s</h2>" % runoob_flag)
print ("<h2> Is Google selected : %s</h2>" % google_flag)
print ("</body>")
print ("</html>")

Modify checkbox.py permissions:

chmod 755 checkbox.py

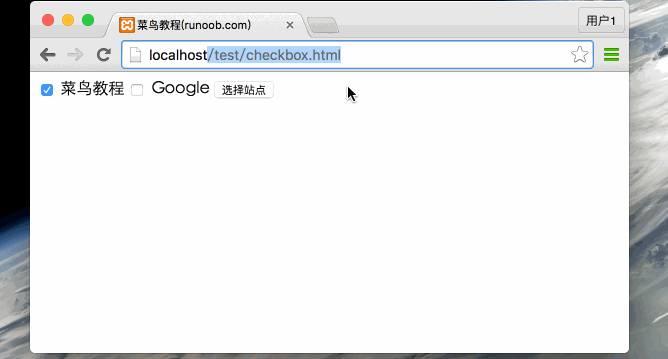

Browser access GIF demonstration:

Passing Radio Data via CGI Program

Radio sends only one piece of data to the server. The HTML code is as follows:

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<form action="/cgi-bin/radiobutton.py" method="post" target="_blank">
<input type="radio" name="site" value="runoob" /> Runoob
<input type="radio" name="site" value="google" /> Google
<input type="submit" value="Submit" />
</form>
</body>
</html>

The radiobutton.py script code is as follows:

Example

#!/usr/bin/python3

# Import CGI processing module
import cgi, cgitb

# Create an instance of FieldStorage
form = cgi.FieldStorage()

# Receive field data
if form.getvalue('site'):
   site = form.getvalue('site')
else:
   site = "Submitted data is empty"

print ("Content-type:text/html")
print ()
print ("<html>")
print ("<head>")
print ("<meta charset=\"utf-8\">")
print ("<title>Runoob CGI Test Example</title>")
print ("</head>")
print ("<body>")
print ("<h2> The selected site is %s</h2>" % site)
print ("</body>")
print ("</html>")

Modify radiobutton.py permissions:

chmod 755 radiobutton.py

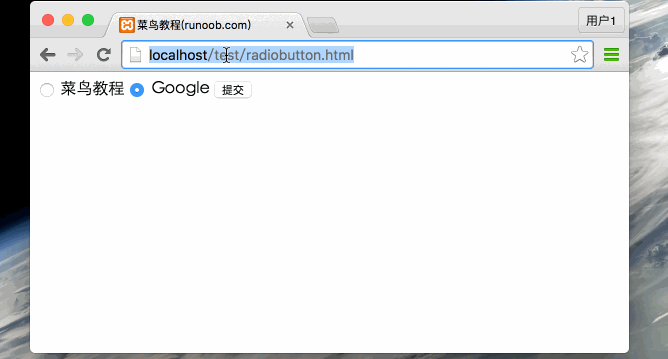

Browser access GIF demonstration:

Passing Textarea Data via CGI Program

Textarea sends multi-line data to the server. The HTML code is as follows:

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<form action="/cgi-bin/textarea.py" method="post" target="_blank">
<textarea name="textcontent" cols="40" rows="4">
Enter content here...
</textarea>
<input type="submit" value="Submit" />
</form>
</body>
</html>

The textarea.py script code is as follows:

Example

#!/usr/bin/python3

# Import CGI processing module
import cgi, cgitb

# Create an instance of FieldStorage
form = cgi.FieldStorage()

# Receive field data
if form.getvalue('textcontent'):
   text_content = form.getvalue('textcontent')
else:
   text_content = "No content"

print ("Content-type:text/html")
print ()
print ("<html>")
print ("<head>")
print ("<meta charset=\"utf-8\">")
print ("<title>Runoob CGI Test Example</title>")
print ("</head>")
print ("<body>")
print ("<h2> The entered content is: %s</h2>" % text_content)
print ("</body>")
print ("</html>")

Modify textarea.py permissions:

chmod 755 textarea.py

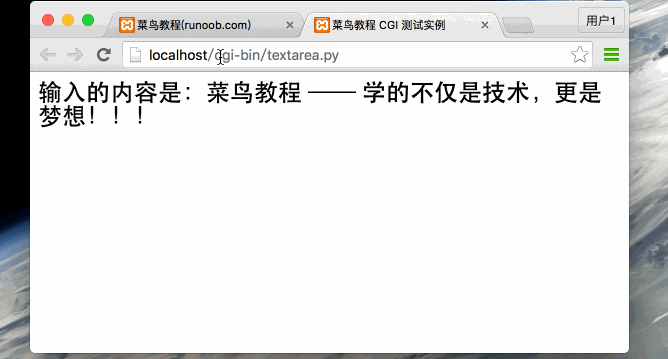

Browser access GIF demonstration:

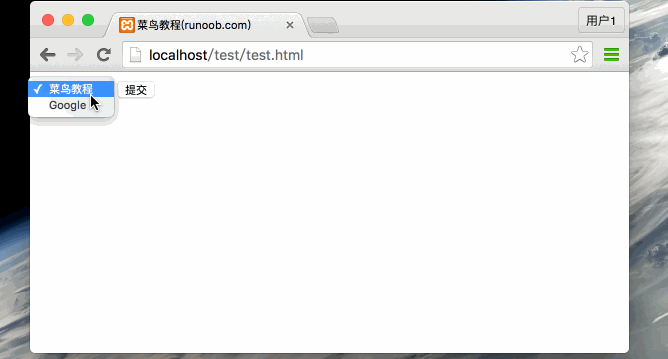

The HTML dropdown code is as follows:

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<form action="/cgi-bin/dropdown.py" method="post" target="_blank">
<select name="dropdown">
<option value="runoob" selected>Runoob</option>
<option value="google">Google</option>
</select>
<input type="submit" value="Submit"/>
</form>
</body>
</html>

The dropdown.py script code is as follows:

Example

#!/usr/bin/python3

# Import CGI processing module
import cgi, cgitb

# Create an instance of FieldStorage
form = cgi.FieldStorage()

# Receive field data
if form.getvalue('dropdown'):
   dropdown_value = form.getvalue('dropdown')
else:
   dropdown_value = "No content"

print ("Content-type:text/html")
print ()
print ("<html>")
print ("<head>")
print ("<meta charset=\"utf-8\">")
print ("<title>Runoob CGI Test Example</title>")
print ("</head>")
print ("<body>")
print ("<h2> The selected option is: %s</h2>" % dropdown_value)
print ("</body>")
print ("</html>")

Modify dropdown.py permissions:

chmod 755 dropdown.py

Browser access GIF demonstration:

Using Cookies in CGI

A major drawback of the HTTP protocol is that it does not identify user identity, which causes great inconvenience for programmers. The emergence of cookie functionality has compensated for this deficiency.

A cookie is data written to the client’s hard drive through the client’s browser when the client accesses a script. When the client accesses the script again, the data is retrieved, thereby achieving identity identification. Cookies are commonly used in identity verification.

HTTP cookie transmission is implemented through HTTP headers, which precede file delivery. The syntax for the Set-Cookie header is as follows:

Set-cookie:name=name;expires=date;path=path;domain=domain;secure

name=name: The value of the cookie to be set (name cannot use “;” and “,” characters). When there are multiple name values, separate them with “;”, for example: name1=name1;name2=name2;name3=name3.
expires=date: The validity period of the cookie, format: expires=“Wdy,DD-Mon-YYYY HH:MM:SS”
path=path: Sets the path supported by the cookie. If path is a directory, the cookie takes effect for all files and subdirectories under this directory, for example: path=“/cgi-bin/”. If path is a file, the cookie only takes effect for that file, for example: path=“/cgi-bin/cookie.cgi”.
domain=domain: The domain for which the cookie takes effect, for example: domain=“www.runoob.com”
secure: If this flag is given, it indicates that the cookie can only be transmitted through an https server using SSL protocol.
Cookie reception is implemented by setting the environment variable HTTP_COOKIE. CGI programs can retrieve cookie information by checking this variable.

Setting a cookie is very simple. The cookie is sent separately in the HTTP header. The following example sets name and expires in the cookie:

Example

#!/usr/bin/python3

print ('Set-Cookie: name="Runoob";expires=Wed, 28 Aug 2016 18:30:00 GMT')
print ('Content-Type: text/html')

print ()
print ("""
<html>
  <head>
    <meta charset="utf-8">
    <title>Runoob Tutorial(runoob.com)</title>
  </head>
    <body>
        <h1>Cookie set OK!</h1>
    </body>
</html>
""")

Save the above code to cookie_set.py and modify cookie_set.py permissions:

chmod 755 cookie_set.py

The above example uses the Set-Cookie header to set cookie information. Optional properties such as expiration time Expires, domain Domain, and path Path can also be set. This information is set before “Content-type:text/html”.

Retrieving cookie information is very simple. Cookie information is stored in the CGI environment variable HTTP_COOKIE, in the following format:

key1=value1;key2=value2;key3=value3....

The following is a simple CGI program to retrieve cookie information:

Example

#!/usr/bin/python3

# Import modules
import os
import http.cookies

print ("Content-type: text/html")
print ()

print ("""
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
<h1>Read Cookie Information</h1>
""")

if 'HTTP_COOKIE' in os.environ:
    cookie_string=os.environ.get('HTTP_COOKIE')
    c= http.cookies.SimpleCookie()
   # c=Cookie.SimpleCookie()
    c.load(cookie_string)

    try:
        data=c['name'].value
        print ("cookie data: "+data+"<br>")
    except KeyError:
        print ("Cookie is not set or has expired<br>")
print ("""
</body>
</html>
""")

Save the above code to cookie_get.py and modify cookie_get.py permissions:

chmod 755 cookie_get.py

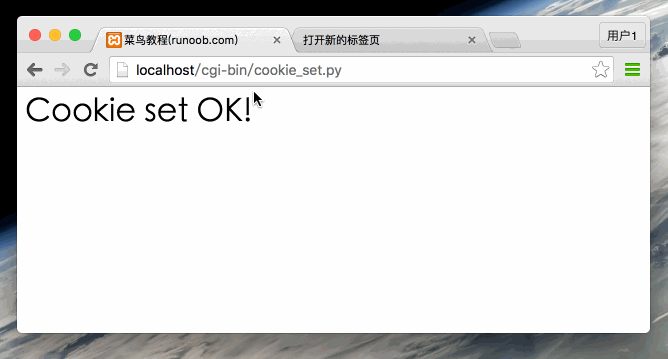

The above cookie setting demonstration GIF is as follows:

File Upload Example

The HTML form for uploading files needs to set the enctype attribute to multipart/form-data. The code is as follows:

Example

<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
 <form enctype="multipart/form-data"
                     action="/cgi-bin/save_file.py" method="post">
   <p>Select File: <input type="file" name="filename" /></p>
   <p><input type="submit" value="Upload" /></p>
   </form>
</body>
</html>

The save_file.py script file code is as follows:

Example

#!/usr/bin/python3

import cgi, os
import cgitb; cgitb.enable()

form = cgi.FieldStorage()

# Get the filename
fileitem = form['filename']

# Check if the file was uploaded
if fileitem.filename:
   # Set the file path
   fn = os.path.basename(fileitem.filename)
   open('/tmp/' + fn, 'wb').write(fileitem.file.read())

   message = 'File "' + fn + '" uploaded successfully'

else:
   message = 'File not uploaded'

print ("""\
Content-Type: text/html\n
<html>
<head>
<meta charset="utf-8">
<title>Runoob Tutorial(runoob.com)</title>
</head>
<body>
   <p>%s</p>
</body>
</html>
""" % (message,))

Save the above code to save_file.py and modify save_file.py permissions:

chmod 755 save_file.py

The above cookie setting demonstration GIF is as follows:

If you are using a Unix/Linux system, you must replace the file separator. On Windows, you only need to use the open() statement:

fn = os.path.basename(fileitem.filename.replace("\\", "/" ))

File Download Dialog

First, create a foo.txt file in the current directory for the program to download.

File download is implemented by setting HTTP header information. The functional code is as follows:

Example

#!/usr/bin/python3

# HTTP Headers
print ("Content-Disposition: attachment; filename=\"foo.txt\"")
print ()
# Open the file
fo = open("foo.txt", "rb")

str = fo.read();
print (str)

# Close the file
fo.close()

Python3 CGI Programming

What is CGI

Web Browsing

CGI Architecture Diagram

Web Server Support and Configuration

Your First CGI Program

Example

HTTP Headers

CGI Environment Variables

Example

GET and POST Methods

Using the GET Method to Transmit Data

Simple URL Example: GET Method

Example

Simple Form Example: GET Method

Example

Using the POST Method to Transmit Data

Example

Example

Passing Checkbox Data via CGI Program

Example

Example

Passing Radio Data via CGI Program

Example

Example

Passing Textarea Data via CGI Program

Example

Example

Passing Dropdown Data via CGI Program

Example

Example

Using Cookies in CGI

Cookie Syntax

Cookie Setting

Example

Retrieving Cookie Information

Example

File Upload Example

Example

Example

File Download Dialog

Example
